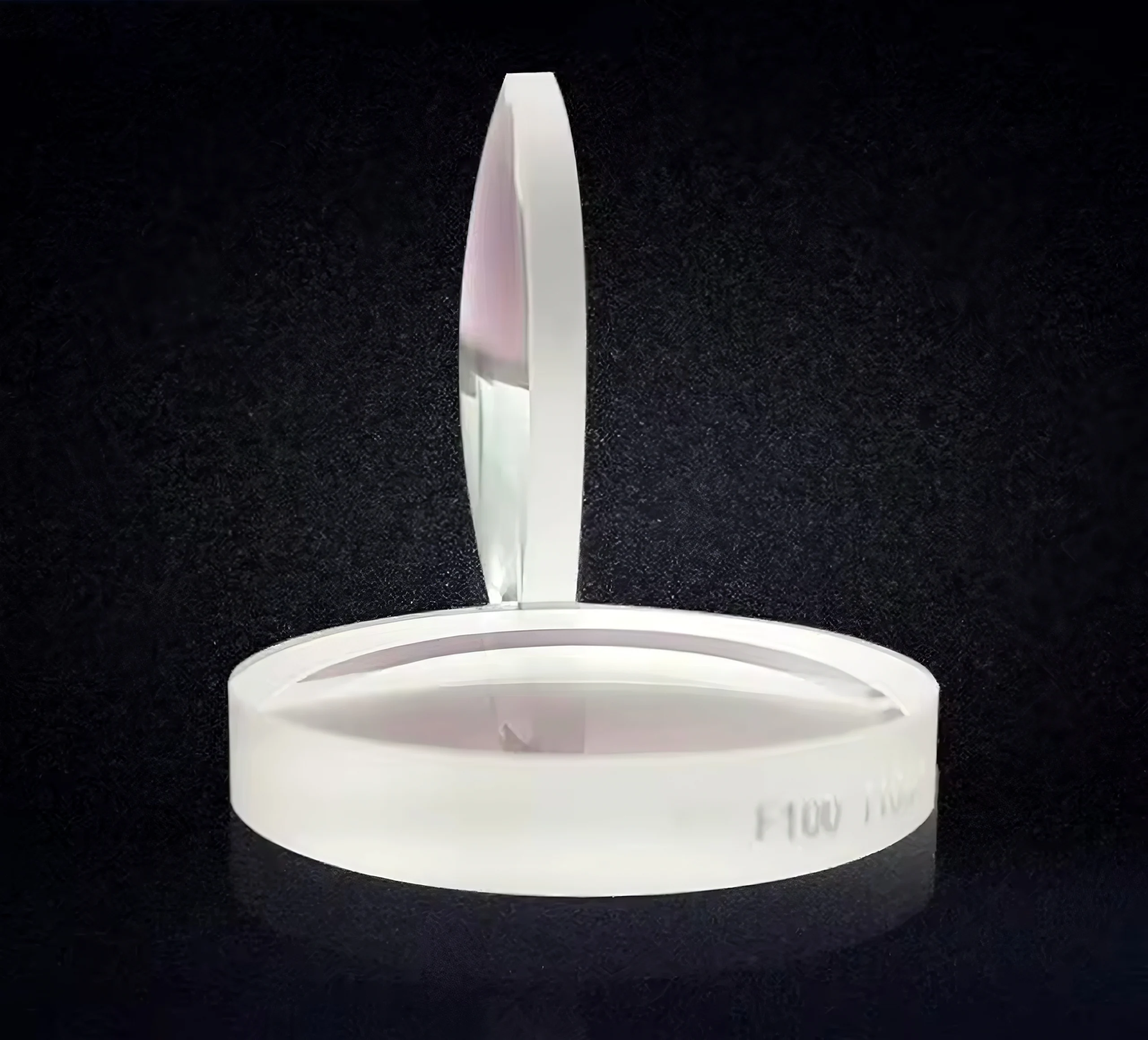

The Critical Importance of the Fiber Laser Focusing Lens The fiber laser focusing lens is the final optical stage in a welding head, responsible for concentrating the collimated beam into a high-intensity focal spot. At Lasvio, our focusing optics are manufactured from imported synthetic fused silica, featuring an extremely low absorption rate to handle high-wattage fiber laser sources. A high-quality lens is indispensable because the precision of the focal point directly affects the depth of penetration and the overall width of the weld bead. By utilizing a professional fiber laser focusing lens, fabricators can achieve the extreme power density required to create stable keyhole welds in demanding materials such as stainless steel and thick carbon steel plates.

Technical Performance of the Fiber Laser Focusing Lens

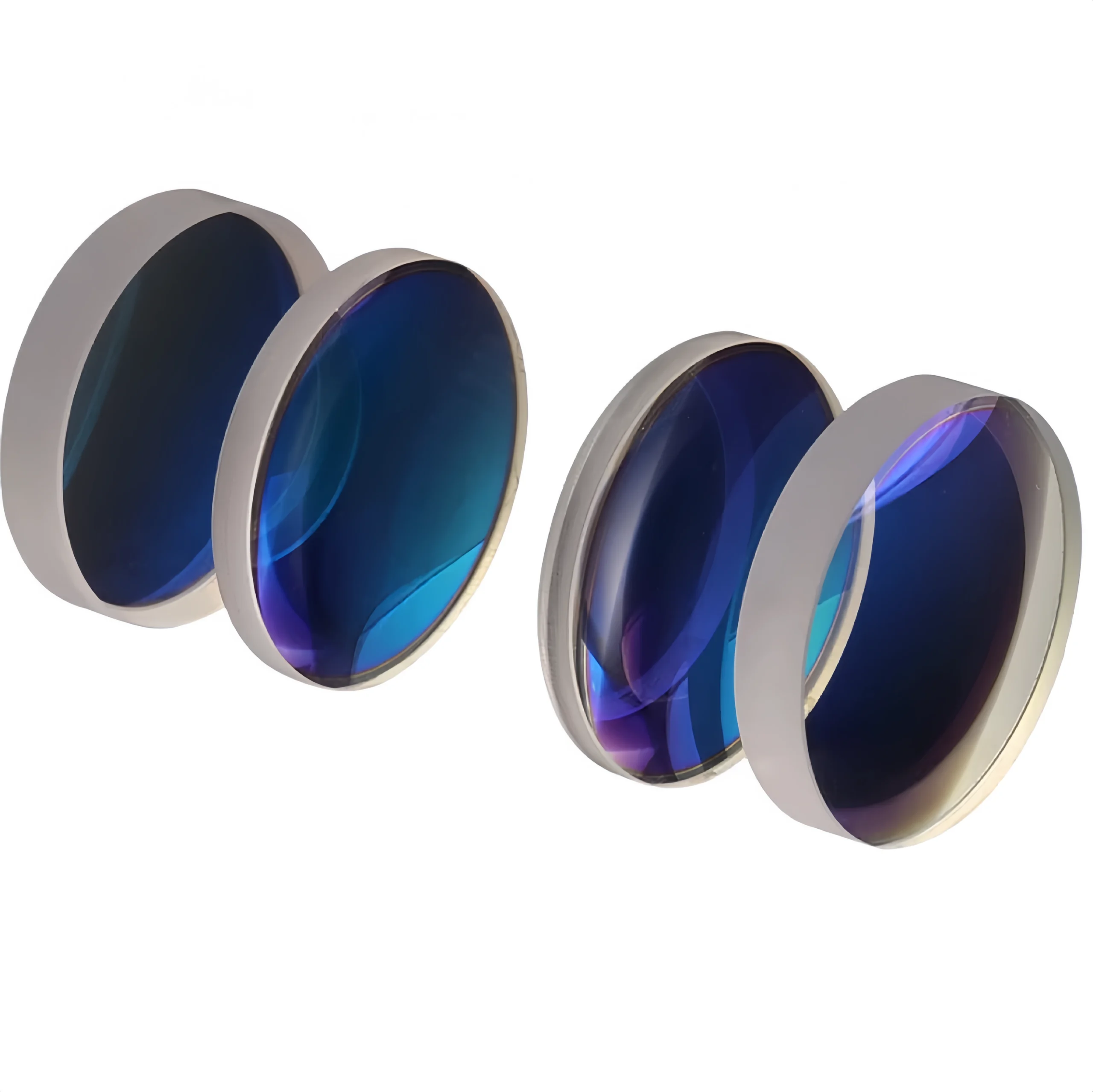

In terms of engineering specifications, these components are designed to perform under intense thermal stress in systems ranging from 1000W to 6000W. Each fiber laser focusing lens features an advanced double-sided anti-reflective coating that ensures a transmission rate of over 99.5 percent at the 1064nm wavelength. We provide a variety of focal lengths, such as 150mm and 200mm, which are precision-matched to industry-standard welding heads like Raytools, WSX, and Hanwei. The surface accuracy is maintained at $\lambda/10$, minimizing spherical aberration and ensuring that the laser energy is delivered with maximum efficiency. This structural integrity prevents focal shift during long-duration industrial production cycles, maintaining consistent quality from the first weld to the last.

Optimizing Industrial Output with Premium Focusing Optics Selecting the correct focal length for your specific application is vital for balancing penetration depth and process tolerance. For example, a shorter focal length creates a smaller, more intense spot for high-speed thin sheet welding, while a longer focal length offers a greater depth of field for thicker materials. To protect the fiber laser focusing lens from contamination, it must always be used in conjunction with a clean protective window and a properly aligned copper nozzle. Regular inspection for any surface pitting or coating discoloration is recommended to prevent permanent damage to the laser head assembly. By investing in high-end optical components, you safeguard your equipment and ensure the repeatable, high-strength results that are necessary for competitive modern manufacturing.
