The Crucial Role of the Fiber Laser Welding Torch The fiber laser welding torch is the primary interface between the high-power laser source and the metal workpiece, demanding extreme precision and thermal stability. At Lasvio, we provide handheld torches engineered with advanced optical systems that support continuous operation at power levels ranging from 1kW to 3kW. A high-quality torch is vital because it must maintain beam alignment while enduring the harsh environment of metal spatter and intense heat. By integrating a professional fiber laser welding torch into your production line, you achieve deeper penetration and cleaner weld beads, significantly reducing the need for post-weld grinding and finishing.

Technical Superiority of Our Fiber Laser Welding Torch

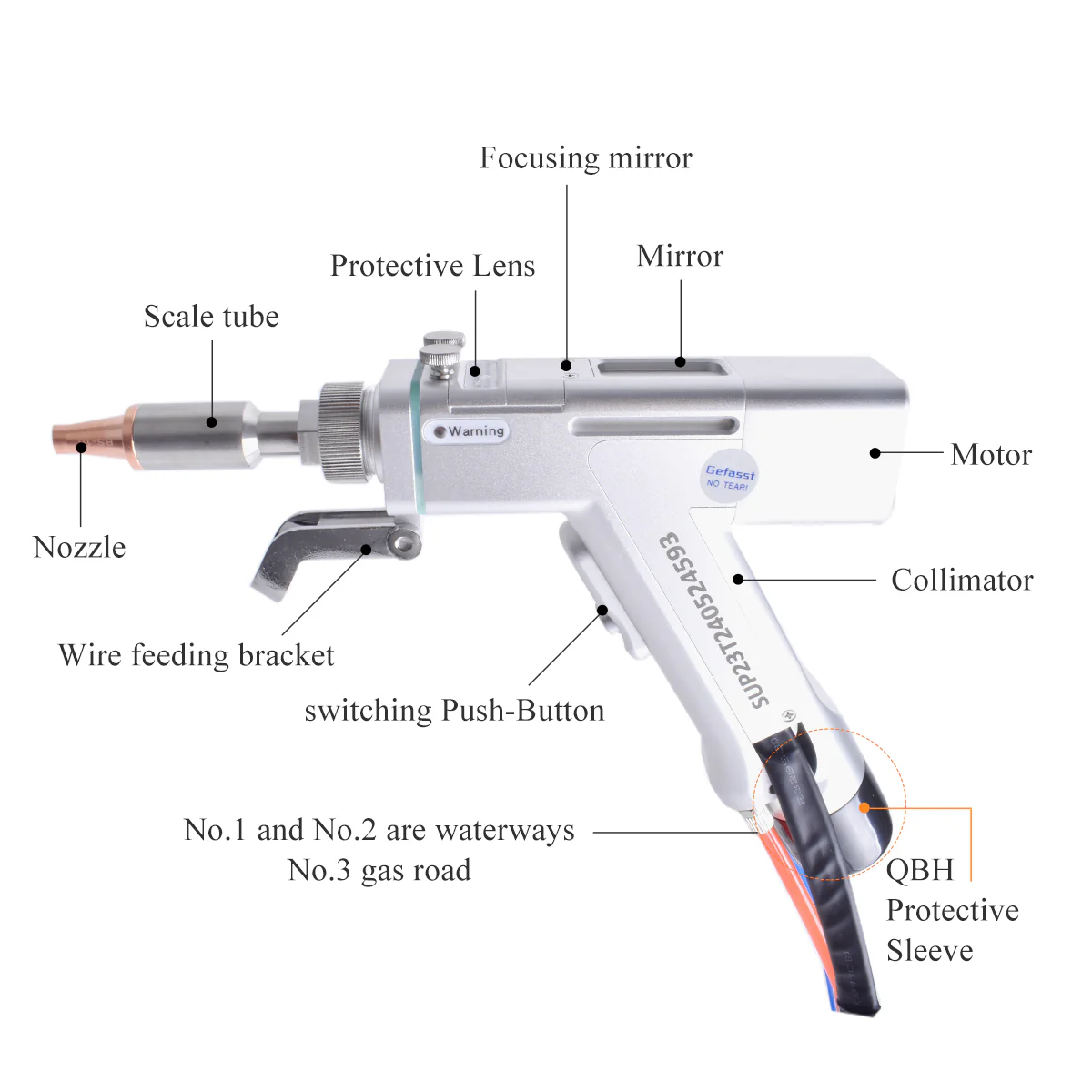

One of the defining features of this system is the integrated dual-pendulum scanning technology. Our fiber laser welding torch allows operators to adjust the width and frequency of the beam swing, which is essential for bridging gaps in poorly fitted parts and creating high-strength fillet welds. The ergonomic, lightweight design ensures that fabricators can work for extended shifts with minimal fatigue. Furthermore, the internal optical chamber is fully sealed and water-cooled, protecting the sensitive collimating and focusing lenses from thermal shift. This cooling efficiency is what allows the torch to maintain a consistent focal point, even during 24/7 industrial manufacturing cycles.

Maintenance and Consumable Care for Your Torch

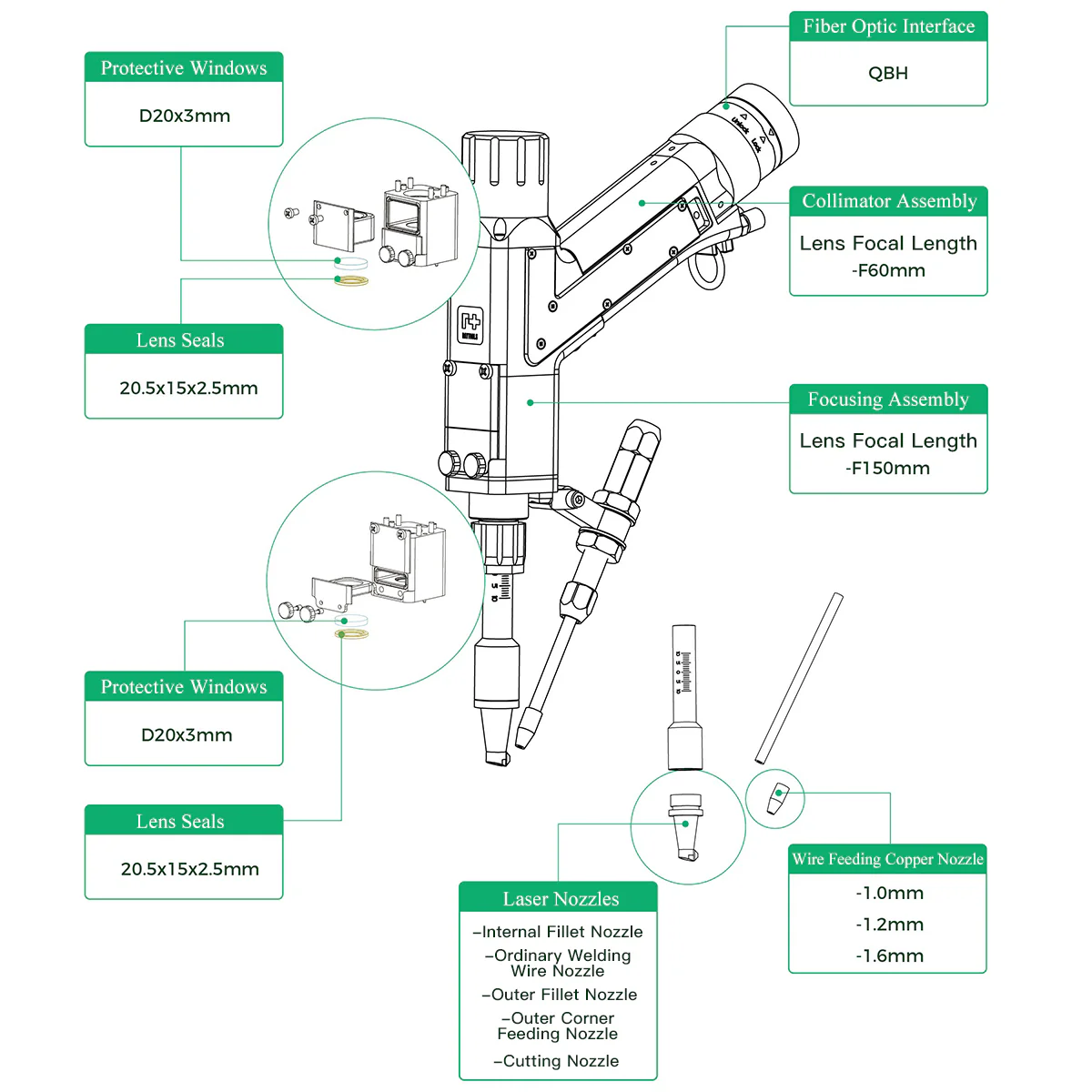

To ensure the longevity of your handheld equipment, regular inspection of the protective windows and copper nozzles is mandatory. Because the welding process generates significant vaporized metal, these consumables must be kept clean to prevent the laser energy from being absorbed by surface debris. We recommend checking the external lens every four hours of use and replacing the copper tips when erosion is visible. Additionally, ensure that the wire feeding alignment is perfectly centered within the beam path. Proper care of your fiber laser welding torch not only protects the expensive internal optics but also ensures that your welding system continues to deliver the high-quality results that modern industrial standards require.
