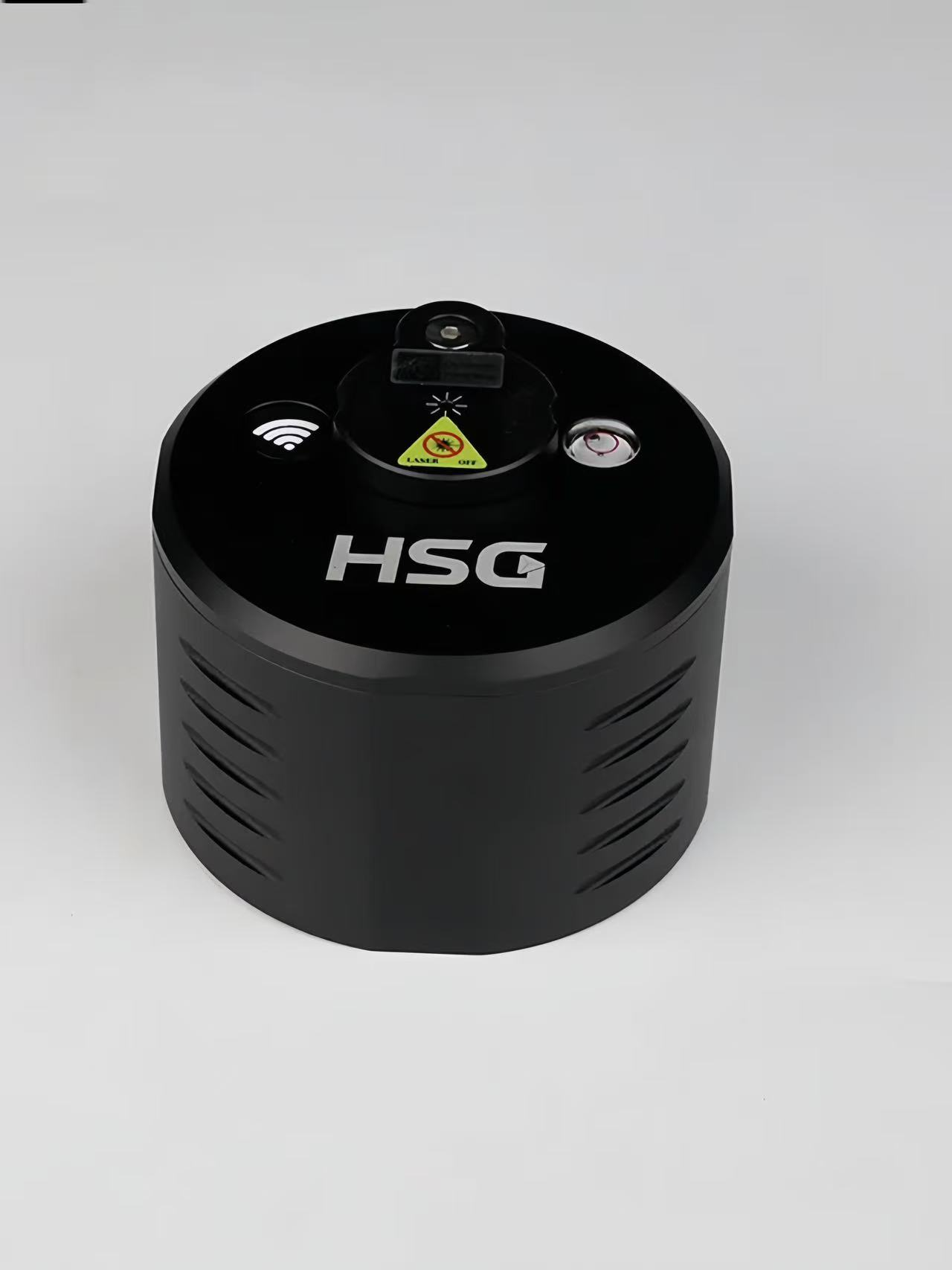

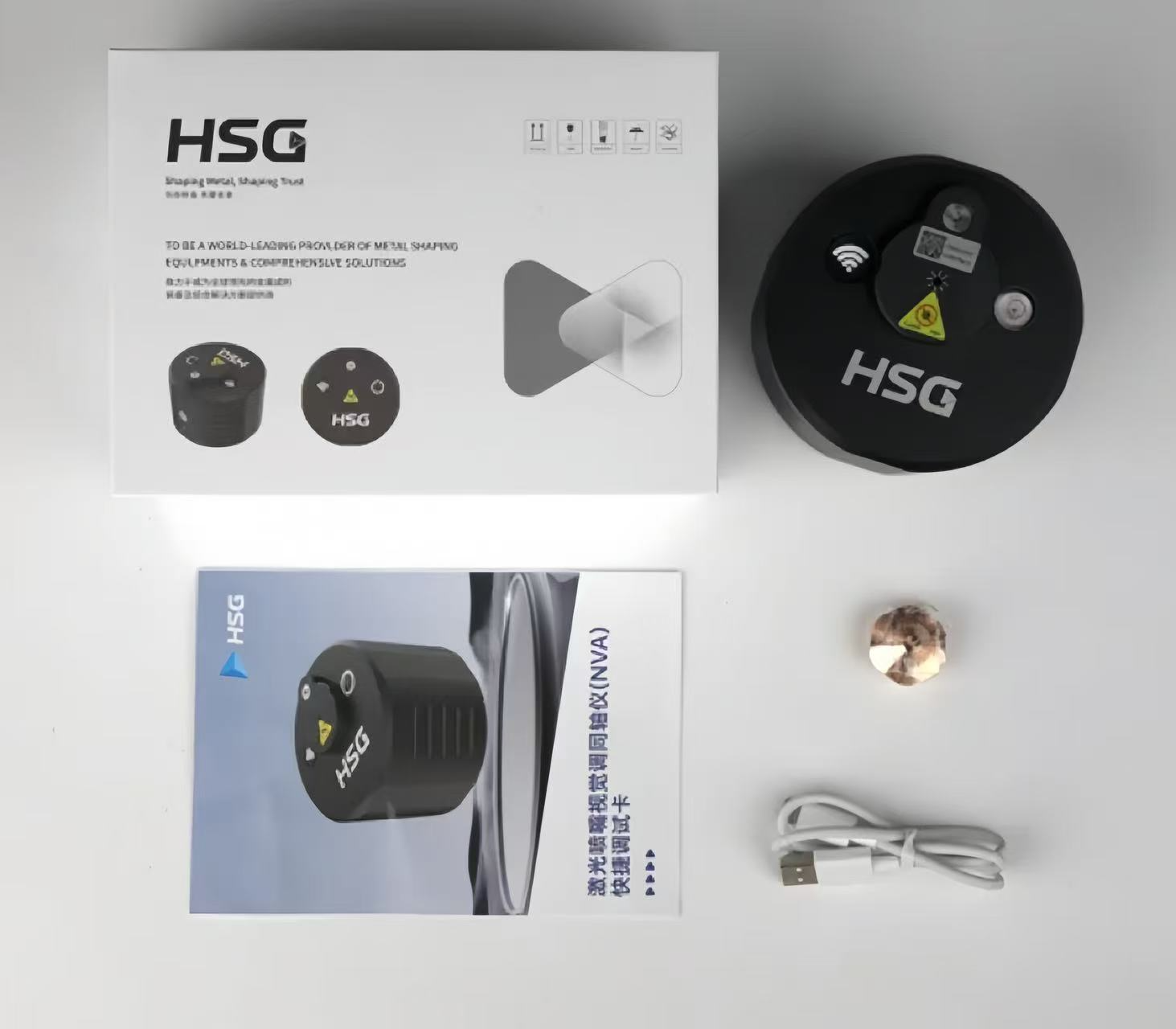

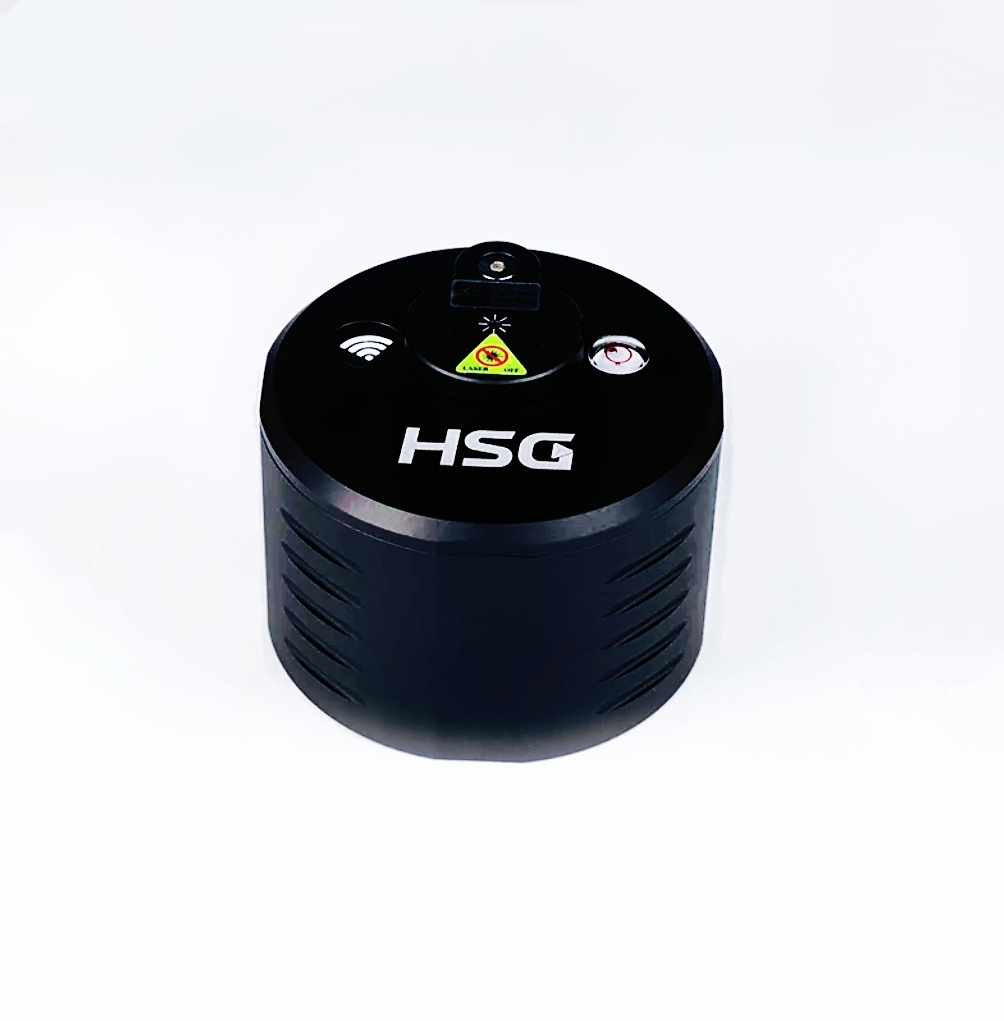

Professional Cutting Nozzle Visual Aligner – Precision Beam Centering Tool for Fiber Laser Heads

This industrial-grade cutting nozzle visual aligner features a lightweight aluminum alloy body and is engineered for high-precision alignment on professional fiber laser heads, including compatibility with HSG P06, P10, and P20 models. It is equipped with a high-resolution 5MP digital camera and integrated adjustable LED lighting, providing clear imaging for nozzle diameters from 0.8mm to 5.0mm. The unit is easy to install via a magnetic or quick-release interface and connects to computers or tablets via USB or Wi-Fi for real-time monitoring. Powered by a long-lasting internal battery, the aligner ensures a centering accuracy of within 0.01mm, making it an essential tool for maintaining optimal optical performance in complex industrial environments.
Facebook Whatsapp Linkedin
Get Best Price
  • Product Description

The Critical Function of the Cutting Nozzle Visual Aligner. A professional cutting nozzle visual aligner is an essential diagnostic tool for ensuring that the laser beam is perfectly centered within the nozzle aperture of high-power fiber laser systems. This aligner utilizes high-definition micro-cameras to provide a real-time magnified view of the beam exit, replacing the traditional and less accurate tape-burn method. Using a dedicated cutting nozzle visual aligner is vital because even a slight misalignment can lead to inconsistent cutting quality, excessive dross, and premature nozzle wear. By integrating this precision instrument into your maintenance routine, you can achieve perfect beam symmetry, which is the foundation for high-speed, high-quality industrial metal cutting.

Technical Performance of the Nozzle Visual Aligner

Regarding the engineering accuracy and functional versatility of this system, each cutting nozzle visual aligner is designed to provide precise feedback for various professional cutting heads. The device is constructed from a lightweight but durable aluminum alloy housing, making it easy to install and move between multiple workstations. It features a high-resolution sensor and adjustable LED illumination, allowing operators to see the exact relationship between the laser spot and the nozzle walls on an external display or mobile device. This level of visual feedback ensures that centering adjustments are made with micron-level precision, maintaining the narrowest possible kerf width and preventing the laser from clipping the copper tip during high-wattage operations.

Maximizing Cutting Efficiency with Visual Centering Technology. Selecting a professional cutting nozzle visual aligner is the most effective way to minimize setup time and reduce material waste in a high-volume production environment. This tool is particularly valuable when switching between different nozzle diameters or after a protective window replacement, as it provides immediate verification of the optical axis. It is important to keep the camera lens clean and to calibrate the software crosshairs regularly to maintain absolute accuracy. By choosing our precision-engineered diagnostic solutions, you ensure that your equipment delivers the consistent, burr-free results that modern manufacturing standards demand. Investing in a reliable cutting nozzle visual aligner protects your expensive internal optics and optimizes the performance of your entire fiber laser cutting cell.

  • Product Parameters

Featuring a dual-power supply design, it operates with built-in 14500 (3.7V) batteries or external 5V power input. Compact and lightweight at 77×105 mm and 575 g (without battery), it’s portable, intuitive, and easy to operate. Through a WiFi connection to mobile devices, users can capture nozzle images, adjust the red beam, and perform manual fine calibration with precision.

Designed for 0–60°C working environments, it ensures stable performance in various field conditions.

Compatible with major laser cutting brands.
