Mobile Laser Welding Fume Extractor for Source Capture
The Lasvio Pro-Series is a mobile air-filtration system designed for handheld laser welding and laser cleaning workstations. It captures fumes close to the process before fine particles and odors spread through the workshop.
Key Features

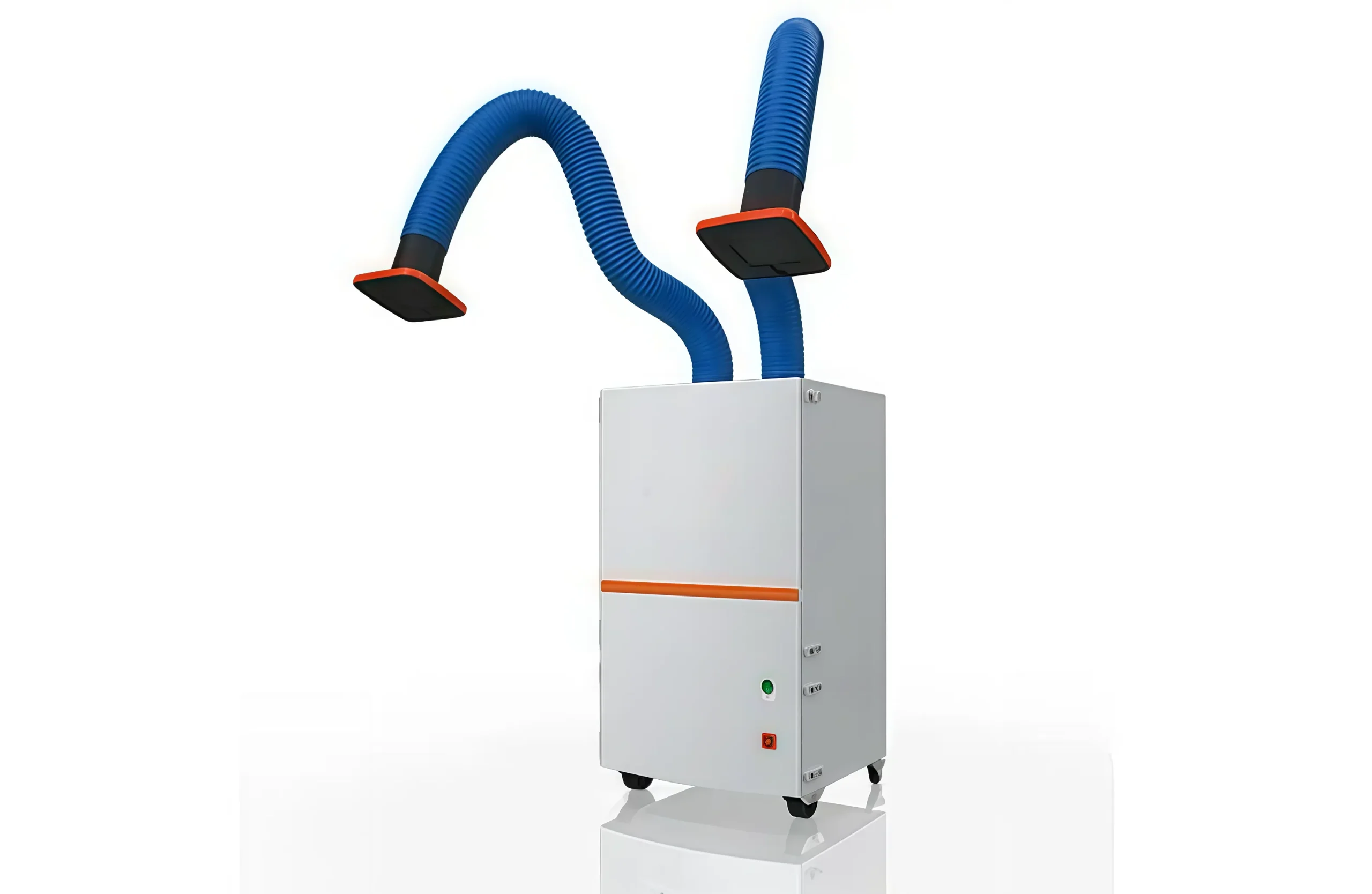

- 360-degree flexible extraction arm: The 2-meter self-supporting arm can be positioned close to the welding or cleaning point.
- Three-stage filtration: A spark-arresting pre-filter, high-efficiency cartridge and activated-carbon stage support particle and odor control.
- Pulse filter cleaning: Repeated low-amplitude pulses remove accumulated dust from the cartridge and help maintain suction.
- Mobile industrial design: Heavy-duty casters and a compact footprint make the unit easier to move between workstations.

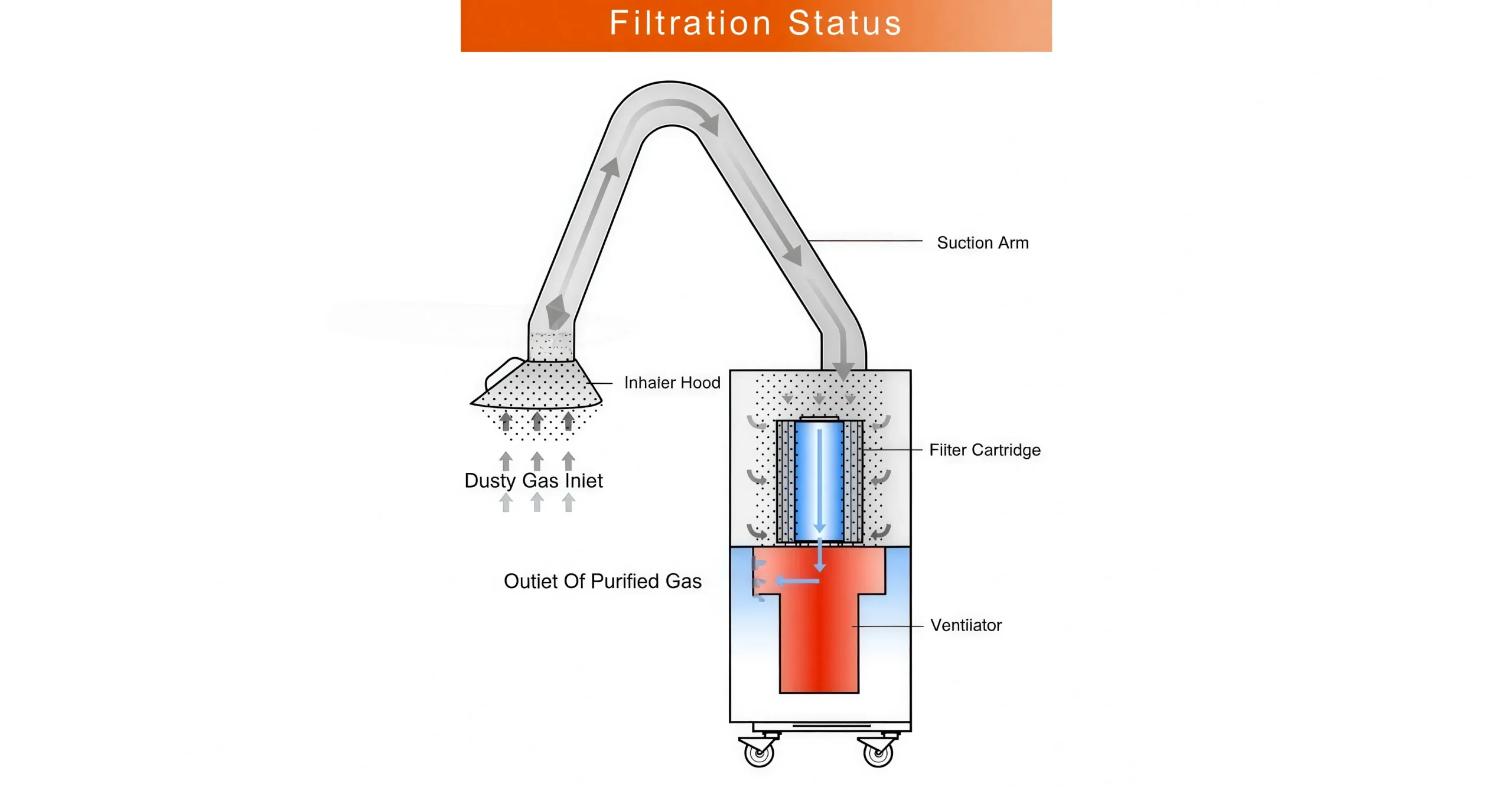

Motor and Filtration System
The built-in centrifugal fan is designed for stable operation, low noise and efficient airflow. A vertically mounted quick-release filter cartridge simplifies inspection and maintenance. The flame-retardant coated filter media is designed for high-efficiency filtration, while cleaned air can be returned to the work area where local regulations permit.
Dust Collection and Maintenance
Dust released during pulse cleaning falls into the lower collection hopper. The hopper includes an anti-return structure and dust-level indication to help operators plan cleaning before accumulated material affects performance.
Typical Applications
- Handheld fiber laser welding stations
- Laser cleaning and surface-preparation work
- Prototype and repair workshops
- Production cells that need movable source extraction
Information Needed for Selection
To recommend a suitable configuration, send Lasvio the process type, laser power, working hours per shift, materials being processed, number of workstations and available floor space. Contact Lasvio for the current specification sheet, filter configuration and delivery options.
