The Vital Defense of a Protective Window for Fiber Laser. The protective window for fiber laser is a sacrificial optical component designed to shield the expensive internal lenses of a laser cutting head from metallic sparks, dust, and high-pressure gas. At Lasvio, our windows are manufactured from high-purity synthetic fused silica, which offers excellent thermal resistance and a high damage threshold for multi-kilowatt operations. This component is vital because it acts as the final barrier between the laser optics and the harsh cutting environment, preventing contamination that could lead to catastrophic lens failure. By utilizing a high-quality protective window for fiber laser, you significantly extend the lifespan of your focusing optics and ensure consistent cutting performance during continuous industrial fabrication.
Technical Performance of the Protective Window for Fiber Laser

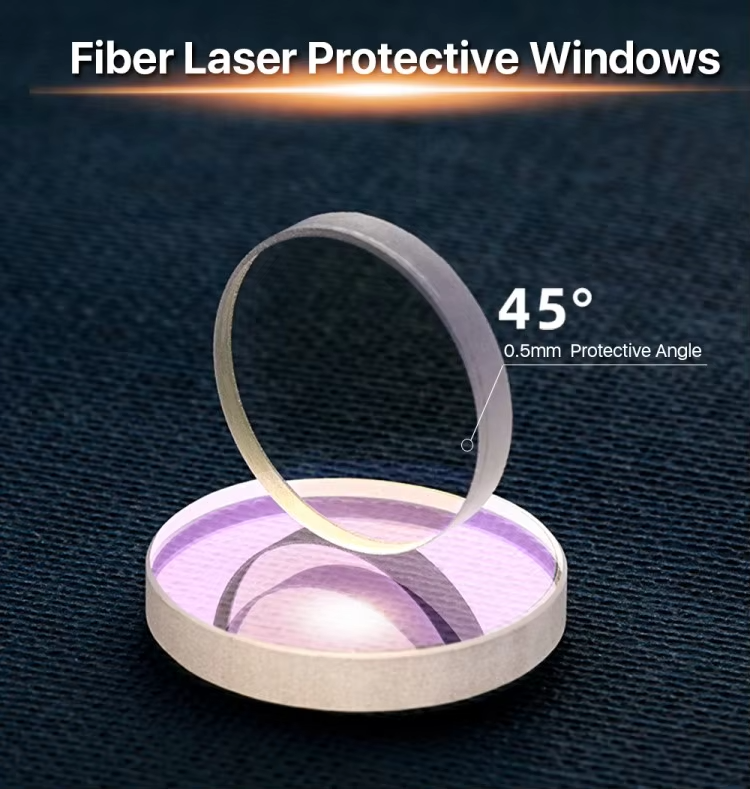

Regarding the optical coating and structural durability, each protective window for fiber laser features a specialized double-sided anti-reflective coating that ensures over 99.5 percent laser transmission. The substrate is precision-polished to achieve an ultra-low absorption rate, which is essential for preventing thermal lensing and focal shift in high-power systems ranging from 1kW to 60kW. We offer a comprehensive range of dimensions, including 27.9×4.1mm, 30x5mm, and 37x7mm, which are specifically designed to fit Raytools, Precitec, and WSX cutting heads. These optics are housed in a lightweight yet rigid structure that maintains its seal under high-pressure nitrogen or oxygen assistance, ensuring that no contaminants bypass the shield during high-speed cutting cycles.
Maximizing Operational Efficiency with Precision Shielding. Selecting a professional protective window for fiber laser is the most cost-effective way to reduce machine downtime and maintain the highest edge quality in your metalworking projects. As a consumable part, it is designed for frequent inspection and quick replacement, allowing the operator to maintain peak optical clarity without needing to disassemble the entire cutting head. It is important to handle these windows with care and use specialized optical cleaners to prevent surface scratches that could scatter the laser beam. By choosing our premium-grade fused silica windows, you ensure that your equipment remains protected and continues to deliver the precise, burr-free results that modern manufacturing demands. Investing in a reliable protective window for fiber laser is the best strategy for safeguarding your optical investment and optimizing your production throughput.
Available Sizes and Cutting Head Compatibility

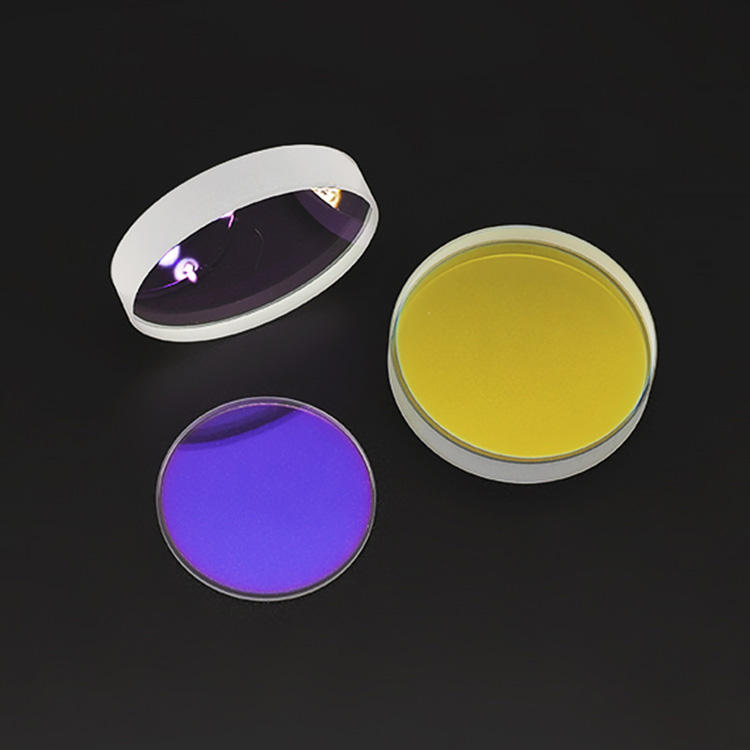

Common protective window dimensions include 27.9 × 4.1 mm, 30 × 5 mm and 37 × 7 mm. Options are available for cutting heads from Raytools, Precitec, WSX and other manufacturers. Size alone is not enough to confirm compatibility: the head model, installation position, laser power and drawer design must also match.
| Selection Point | Information to Confirm |
|---|---|
| Cutting head | Brand and complete model number |
| Window size | Diameter or length × width × thickness |
| Laser system | Power and operating wavelength |
| Position | Upper, middle or bottom protective window |
| Quantity | Sample, maintenance stock or bulk order |
When to Clean or Replace the Protective Window
Clean the window only when the contamination is loose and the optical coating remains intact. Replace it if you see permanent haze, burn marks, cracks, coating discoloration or a hot spot that returns after cleaning. Read our protective lens cleaning procedure and protective window replacement guide.
Request the Correct Protective Window
Send a clear photo of the old optic or package label together with the cutting-head model, measured dimensions, laser power and required quantity. Contact Lasvio for compatibility checking before ordering.
